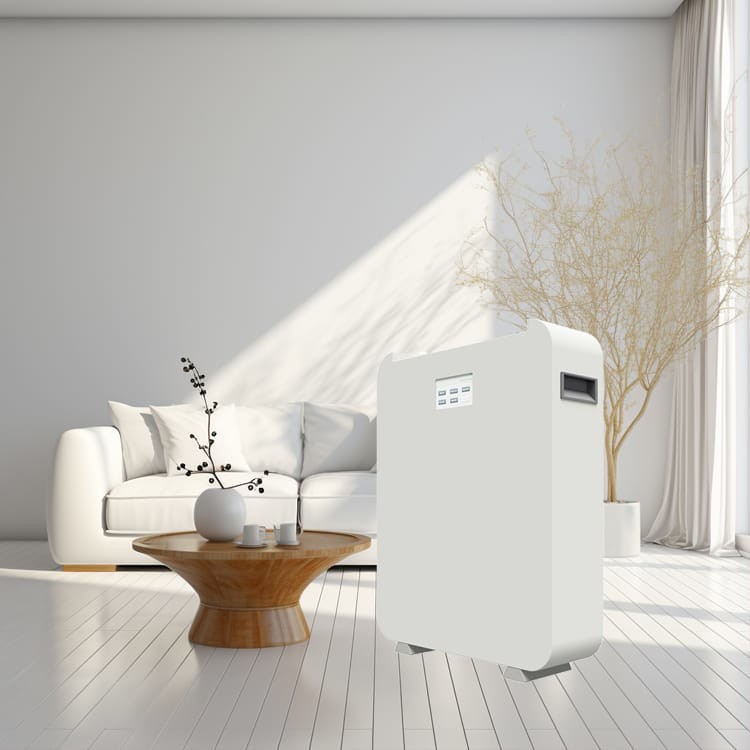

Stackable Home Energy Storage System Description
The Stackable Home Energy Storage System is mainly by putting the excess electricity generated by solar panels into the battery pack for storage and easy access to the home at any time. When daytime. When the sun is normal, the solar PV modules produce more energy and the batteries can store it to ensure electricity at night or on its another cloudy or rainy day. It is also because the battery can optimize the use of electricity, it can ensure the efficient operation of the whole home-based pure that system.
feature
1.hour to Shenzhen port.
2.12 years' factory can supply cost-effective batteries.
3. Qualified technical team can meet the requirements of private customization.
4.Trustable supplier to various countries (United States, England, Australia, Europe). "
Stackable Home Energy Storage System Specification
| Model | 3 modules | 4 modules | 5 modules | 6 modules |
| Nominal capacity (kwh) | 7.68 | 10.24 | 12.8 | 15.36 |
| Battery cell configuration | 48S1P | 64S1P | 80S1P | 96S1P |
| Operating voltage range(V) | 136.8-172.8 | 182.4-230.4 | 228-288 | 237.6-345..6 |
| Weight | 115kg | 145kg | 175kg | 205kg |
| Nominal voltage | 153.6V | 204.8V | 156V | 307.2V |
| Dimension (mm) | 550x430x697.5 | 550x430x826.5 | 550x430x955.5 | 550x430x1084.5 |
| Battery cell type | LiFePO4 |
| Rated working current | 50A |
| Communication method | CAN/RS485/RS232 |
| Operating temperature range | Charging: 0~45℃ Discharging: -10~50℃ |
| Protection level | IP55 |
| Installation method | Floor installation |
| Cycle life | >6000 Cycles(80%DOD) |
| Peak charge/discharge current | 63A, (@25℃,5S) |
| Self-discharge rate | ≤3.5%/month/@25°C |
| Series function | 3S~8S |
Stackable Home Energy Storage System Connection Diagram
FAQ
Q: What is your MOQ?
A: There is no MOQ and we also support a sample service.
Q: How about the payment terms?
A: T/T, Paypal, Wire Transfer and Online Transfer are all acceptable.
Q: Is the battery kit equipped with BMS?
A: Yes, our battery kit comes complete with the BMS and all the accessories needed to assemble the battery pack. Customers can assemble their own battery packs if they have enough batteries.
Q: What options are available for the BMS that comes with the battery kit?
A: 100A/150A/200A BMS are availble for customers to choose.
Q: What are the advantages of your battery kits?
A: Our kits have the following advantages:
⭐Stackable
⭐External port can pass 250A current individually
⭐The internal BMS is compatible with CAN and RS485 communication and can communicate with a wide range of inverters without complex commissioning
⭐The PCB boards are soldered with the corresponding wires for the customer to assemble in order
⭐The external LCD display shows the basic parameters
⭐The side clamping plates apply pressure to the battery for better clamping
⭐Equipped with a weak switch for greater safety
⭐Complimentary 485 adapter cable for connection to the PC
Q: What is the shipping time limit for battery kit?
A:The transit time is approximately 35-38 business days.
Q: What should I do when I receive the battery kits?
A: First open the box when you sign for it to check that the contents have not been damaged in transit, and then double check that the battery kit is complete with all the accessories.
Q: Why has my logistics information not been updated?
A: The goods will be shipped by UPS or a local shipping company, but due to the tedious process of shipping across borders, the logistics information will not be updated for a while until the goods arrive in your country. It is only when the goods are picked up by the local carrier and ready for dispatch that the logistics status will be updated accordingly.
